Description

Product details

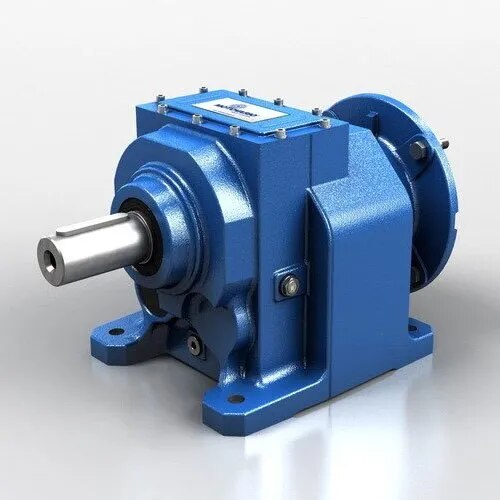

Product Details: Gear Type: Helical Material: Cast Iron Power: up to 45 kW Torque (Newton Meter): 130-18000 Brand: Motovario Output Speed: 14-280 RPM Surface Treatment: Painted with RAL 5010 blue epoxy-polyester powder Radial Loads: max 55.000 N Warranty: 2 Year Features: - Sizes: 030-040-050-060-080-100-125-140 - Available versions: H - fitted for motor coupling, IH - with input shaft, CH - with compact motor, PH - fitted for motor coupling with flexible joint - Casing with feet, flange F or universal U - Gears hardened and tempered with shaved or ground profile - Gearing with 1, 2 and 3 reduction stages - Reduction ratios between 1,23 and 282,10 - Cases in G200 grey cast iron for high strength and optimized with FEM analysis - Load capacity calculated to ISO 6336 and verified according to AGMA 2001
