Description
Product details

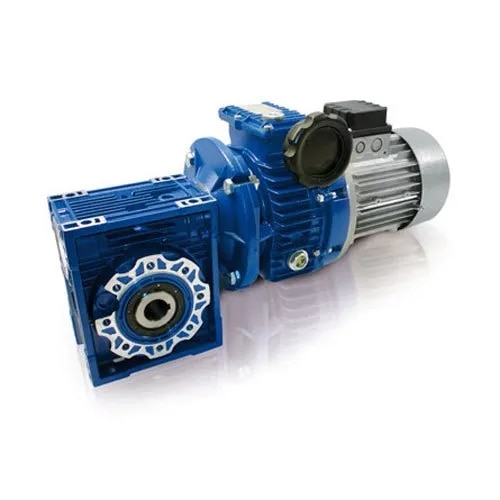

Product Details: Material: Aluminium Power: 18.5 kW Brand: Motovario Orientation: Vertical Output (rpm or ratio): 14-280 RPM Max Torque: 1.550 Nm Radial Loads: 18.000 N Model Number: NMRV 130 Being a leading firm in this industry, we are offering a high-quality range of Aluminium Worm Gearbox. Features: - NMRV – Sizes: 025-030-040-050-130-150 - NMRVpower – Sizes: 063-075-090-110 - Available versions: fitted for motor coupling, with input shaft, with torque limiter - Cases up to 110 in die-cast aluminium alloy and over 130 in G200 grey cast iron - Ratios between 5 and 100 - Aluminium units are supplied complete with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity - Worm wheel: bronze Cu Sn12 Ni2 (UNI7013-10) - Ground worm profile ZI (UNI4760) - Loading capacity in accordance with: ISO.14521, DIN.3996, BS 721, AGMA 6034, ISO 6336, DIN 3990, DIN 743, ISO 281 - Size 030 and over are painted with RAL 5010 blue epoxy-polyester powder - Available with pre-stage unit: HA31 for NMRV040/NMRV050, HW 030/040 for NMRV-P Series - Worm gear reducers are available with different combinations: NMRV+NMRV, NMRV power+NMRV, NRV+NMRV, NRV power+NMRV, HA31+NMRV, HW/NMRV power, IHW/NMRV power - Options: protection cover, torque arm, output flange, output shaft kit, torque limiter, viton oil seals, low/high temperature and food grade oil, filling/drain/breather/level plug, reinforced output
